Stainless Steel Ultra Fine Wire

Overview
See also

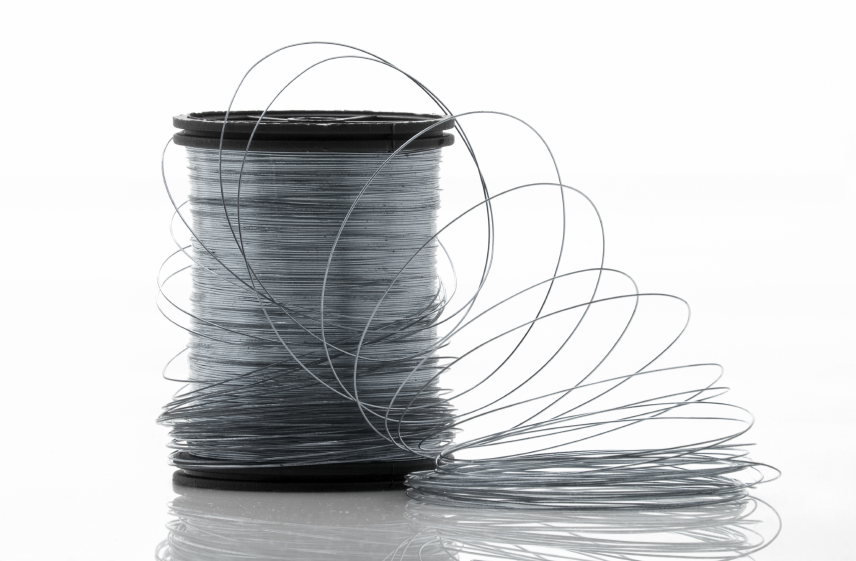

We can now supply ultra fine stainless steel wires.

The fine wires can be produced from 0.03mm to 0.80mm with exceptionally tight tolerances of diameter and ovality. These can be supplied in a range of tensile strengths and spools to suit the required application. The wires can be supplied soft annealed or hard drawn.

Common uses are for textiles, filters, wire rope production or small springs. The ultra fine stainless
steel wires can be supplied in both 304 (1.4301) and 316 (1.4401). These are normally manufactrued
to order but can also be held in stock for scheduled deliveries within 48 hours.

The full range of sizes is listed below:

These wires are manufactured according to the international standards and can be customised upon the request. The chart below is the standard specification of products offered.

304 Soft Wires 304 Hard Wires
Ø (mm)	Tolerance (mm)	Ovality (mm)	Tensile Strength (kgf / mm2)	Tensile Strength (N / mm2)	Elongation (%)
0.03	± 0.003	0.003	70 - 100	686 - 980	10 min
0.04
0.05	± 0.004	0.004
0.06			70 - 90	686 - 882	20 min
0.07
0.08
0.09	± 0.005	0.005
0.10
0.12	± 0.007	0.007
0.14
0.16
0.18	± 0.010	0.010	70 - 85	686 - 833
0.20
0.25
0.30
0.35	± 0.013
0.40
0.45
0.50
0.55	± 0.015	0.015	65 - 85	637 - 833	30 min
0.60
0.65
0.70
0.75
0.80

316 Soft Wires 316 Hard Wires
Ø (mm)	Tolerance (mm)	Ovality (mm)	Tensile Strength (kgf / mm2)	Tensile Strength (N / mm2)	Elongation (%)
0.03	± 0.003	0.003	70 - 100	686 - 980	10 min
0.04
0.05	± 0.004	0.004
0.06			70 - 90	686 - 882	20 min
0.07
0.08
0.09	± 0.005	0.005
0.10
0.12	± 0.007	0.007
0.14
0.16
0.18	± 0.010	0.010	70 - 85	686 - 833
0.20
0.25
0.30
0.35	± 0.013
0.40
0.45
0.50
0.55	± 0.015	0.015	65 - 85	637 - 833	30 min
0.60
0.65
0.70
0.75
0.80
